MEA® TopSlot Drainage

MEA topslot drainage delivers an elegant, functional solution for surface water management in public, commercial, and landscaped environments. It integrates a narrow surface slot into paved or tiled finishes, enabling discreet water capture without compromising design continuity. The system offers flexibility in both form and function. You can choose from center, side, arc, or multiple slot configurations to meet specific architectural needs. Additionally, its slot height can be customized to adapt to surrounding surface levels, while the cover thickness options of 1.2 mm, 2 mm, or 3 mm provide varying structural capacities. MEA topslot drainage ensures compatibility with multiple channel widths (100 mm to 300 mm) and supports loading classes up to D400. Whether for pedestrian zones, plazas, or building perimeters, this system balances aesthetics with robust drainage performance.

Features

• Customizable slot position: middle, side, arc, or multi-slot

• Slim, clean surface profile ideal for paved or tiled areas

• Various cover thicknesses: 1.2 mm, 2 mm, or 3 mm

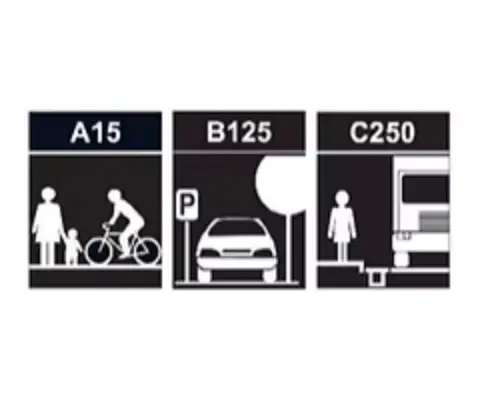

• Supports loading up to D400 for durability in public zones

• Compatible with 100 mm to 300 mm channel widths

• Available in multiple body heights to suit site gradients

Applications and Benefits

• Ideal for landscaped areas, walkways, plazas, and building surroundings

• Preserves design integrity while enabling effective water capture

• Reduces visual disruption compared to traditional grates

• Offers flexible specification for both light and heavy duty zones

• Ensures seamless drainage integration into architectural finishes

Installation and Layout Flexibility

MEA topslot drainage channels offer modular options with adjustable slot height and profile. This allows installers to align drainage precisely with surface materials, improving finish and function. With easy slot cover insertion and maintenance access, the system supports both straight-line and perimeter installations in modern urban projects.

FAQs

Q1: Can I specify slot position types?

A: Yes, we offer center, side, arc, and multi-slot options for visual and functional flexibility.

Q2: Is this system suitable for heavy traffic areas?

A: Absolutely. When configured with the right thickness, it can support up to D400 loading.

Q3: How do I adjust the slot height?

A: Slot height is customizable during manufacturing to match surrounding ground levels.

Q4: What widths are available for the drainage body?

A: We offer standard widths between 100 mm and 300 mm for project versatility.

Q5: Does this require special maintenance?

A: No. The system allows easy slot cover removal for cleaning and inspection.

Why Choose Topslot Drainage

MEA topslot drainage is the go-to solution for architects and engineers seeking seamless drainage that blends with the surrounding design. With a clean surface appearance and durable performance, it reduces visual clutter while handling rainwater efficiently. Its high customizability makes it suitable for both heavy-use urban infrastructure and refined landscaped projects. By combining elegance and engineering precision, MEA topslot drainage solves the challenge of integrating high-capacity drainage into visually sensitive environments.
