Sewage Lift Station | IP68 Enclosure with Air & Level Control

Sewage Lift Station Steady-Blauwal 500-55/75

Model: Steady-Blauwal 500-55/75

Multiple Water Inlets

Metal Impeller

This product features air pressure and liquid level control, an IP68-rated enclosure for excellent protection, and a large non-blocking channel paired with a durable metal impeller. Designed for kitchen and domestic wastewater, it offers multiple water inlets and comes equipped with a control cabinet to ensure stable and reliable operation.

MEA sewage lift station offers a compact yet powerful solution for collecting and pumping kitchen and domestic wastewater. Engineered for underground or basement installations, it combines air pressure and liquid level control to manage flow precisely. Its IP68-rated enclosure provides full protection against water and debris, while the large, non-blocking channel with a metal impeller ensures smooth, clog-free operation. With multiple water inlets, a 150L tank, and a pre-installed control cabinet, MEA sewage lift station is built for stability, reliability, and long-term service in residential and light commercial environments.

Product Characteristics

Air pressure/liquid level control
Enclosure protection level IP68
Large channel, non-blocking
Metal impeller
Control cabinet
Multiple water inlets
Suitable for kitchen and domestic wastewater

Product Accessories

Accessories	Tank	Pump body	Impeller	Bearing	Mechanical seal	Fastenings	Seal	Non-return value
Material	HDPE	Ductile iron	Ductile iron	SUS410	SiC	SUS304	ABS / NBR / SUS304	Valve body: grey iron HT200
Technical Parameter	150L	Double pump	Swirl / Channel type	Deep groove ball bearing	Double ended	-	∅110	DN80 (2)

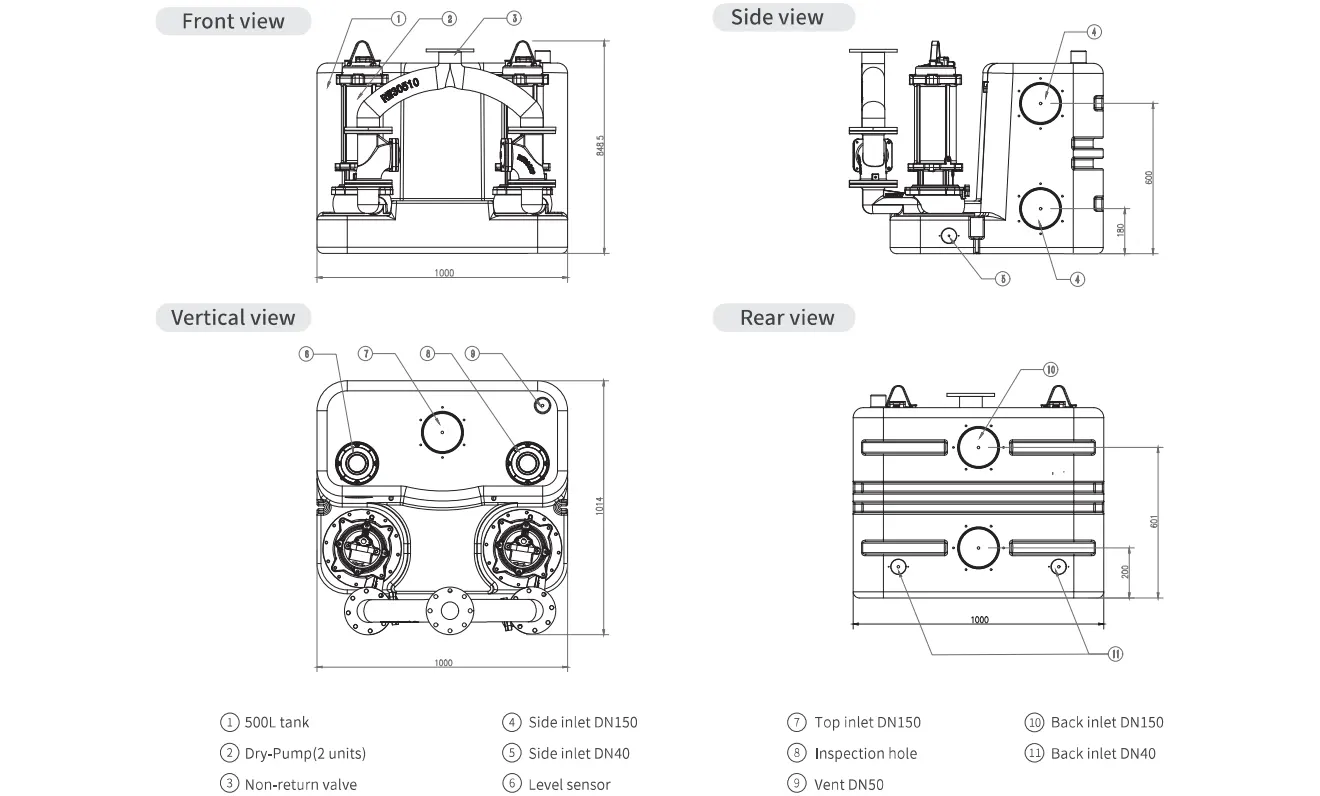

Product Size

FAQs

Q1: What kind of wastewater does this station handle?

A: It’s suitable for greywater and food-bearing domestic wastewater from kitchens, laundries, and similar sources.

Q2: How is it controlled?

A: The system uses air pressure and liquid level sensors to activate pumps as needed.

Q3: Can it prevent backflow?

A: Yes, it includes a non-return valve and sealed housing to eliminate reverse flow risk.

Q4: What ensures clog-free operation?

A: A wide flow channel and metal impeller reduce blockages from solids or grease.

Q5: Is the unit safe for full submersion?

A: Absolutely. Its enclosure meets IP68 standards, offering total waterproofing.

Why Choose Sewage Lift Station

MEA sewage lift station combines hydraulic performance with long-term resilience. Its dual-pump system and smart level control deliver uninterrupted wastewater handling. The use of corrosion-resistant materials like HDPE, ductile iron, and SUS304 stainless steel extends service life while reducing repair needs. The non-blocking channel keeps water moving freely, even during peak loads. Whether for new construction or retrofit, this unit supports faster installation, lower maintenance, and dependable drainage under real-world conditions.
