MEA Sewage Lift Station Pump Steady-Blauwal 150
- Model: Steady-Blauwal 150-15/22/30
- Multiple Water Inlets
- Metal Impeller
This product features air pressure and liquid level control, an IP68-rated enclosure for excellent protection, and a large non-blocking channel paired with a durable metal impeller. Designed for kitchen and domestic wastewater, it offers multiple water inlets and comes equipped with a control cabinet to ensure stable and reliable operation.
Specifications
| Model No. | Steady-Blauwal 150-15/22/30 |
| Number of Pumps | Double pump |
| Power Supply | 380V/50Hz |
| Rated Power(KW) | 1.5/2.2/3.0 |
| Revolutions Per Minute(RPM) | 2950 |
For comprehensive information, please see the document available for download below.
-
Description
MEA sewage lift station pump provides a reliable solution for transferring kitchen and domestic wastewater under pressure. With a fully enclosed IP68-rated housing, it safeguards internal components even in submerged conditions. This system uses both air pressure and liquid level sensing to control pump cycles, ensuring accuracy and responsiveness. Additionally, it integrates a large, non-blocking channel and a rugged metal impeller that handles suspended solids effectively.
In addition to its core hydraulic features, this unit includes a pre-wired external control cabinet. As a result, technicians can manage system status remotely and respond to changes instantly. Its compact, corrosion-resistant construction allows easy placement in kitchens, basements, and utility shafts. Whether for new installations or system upgrades, the sewage lift station pump offers smart control and consistent operation in challenging drainage environments.
Product Characteristics
- Air pressure/liquid level control
- Enclosure protection level IP68
- Large channel, non-blocking
- Metal impeller
- Control cabinet
- Multiple water inlets
- Suitable for kitchen and domestic wastewater
Product Accessories

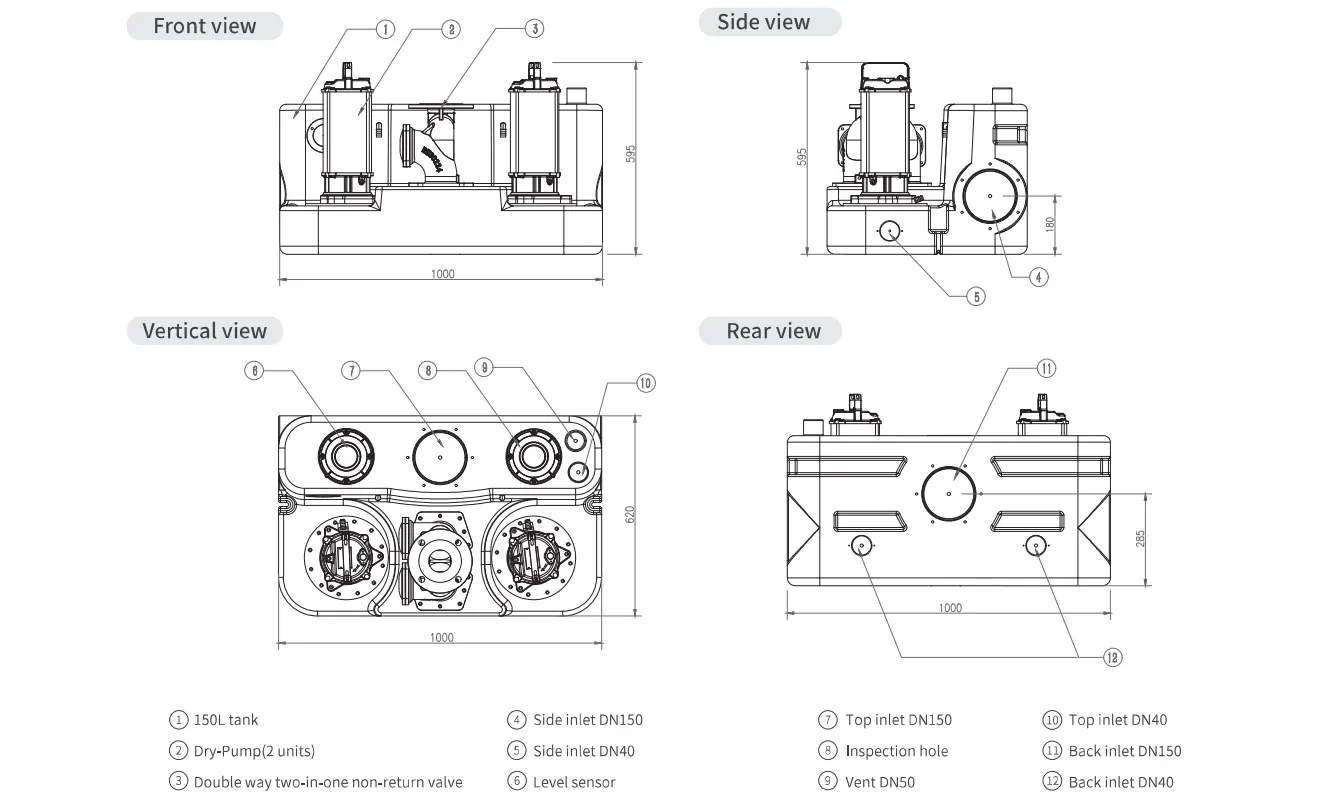

Accessories Tank Pump body Impeller Bearing Mechanical seal Fastenings Seal Non-return value Material HDPE Ductile iron Ductile iron SUS410 SiC SUS304 ABS / NBR / SUS304 Valve body: grey iron HT200 Technical Parameter 150L Double pump Swirl / Channel type Deep groove ball bearing Double ended - ∅110 DN80 (2) Product Size
FAQs
Q1: What makes the enclosure reliable in wet conditions?
A: The IP68 rating ensures complete waterproofing for submersible applications.Q2: How does the system control water levels?
A: It uses both air pressure and liquid level sensors to trigger automatic pump cycles.Q3: Can this pump handle solids?
A: Yes. Its large internal channel and robust impeller manage solid particles without clogging.Q4: What’s the advantage of having dual pumps?
A: Dual pumps offer redundancy, allowing one pump to continue working while the other is maintained.Q5: Where can this unit be installed?
A: It suits kitchens, basements, underground pump chambers, and areas below municipal sewer levels.Why Choose Sewage Lift Station Pump
This sewage lift station pump delivers more than basic wastewater transfer. It combines high-level waterproofing, intelligent controls, and material durability into one integrated solution. With a wide internal flow channel and stainless-steel impeller, it resists blockages and maintains stable performance. The inclusion of an external control cabinet ensures fast configuration and monitoring. Whether you're dealing with low-lying kitchens or complex domestic drainage systems, this pump provides the performance and adaptability professionals demand.
