MEA® Traffic D/DM Drainage Channel

MEA traffic drainage channel is engineered to withstand variable vehicle loads across urban roads, parking areas, and transport hubs. With a clear width of 100 mm and an adjustable total height from 250 mm to 350 mm, this channel provides versatile installation options. Its design accommodates three fall configurations—linear fall, stepped fall (2.5%), or no fall—to suit a wide range of gradient conditions. The integrated outlet connector enhances connection efficiency and flow transition. Thanks to its high load rating (A15 to F900), MEA traffic drainage channel ensures stability under everything from pedestrian paths to heavy-duty truck routes.

Features

• Adjustable height from 250 mm to 350 mm

• Clear internal width of 100 mm and total width of 154 mm

• Supports linear fall, stepped fall (2.5%), or flat installations

• Corrosion-resistant materials extend product lifespan

• Integrated outlet connector simplifies layout and connection

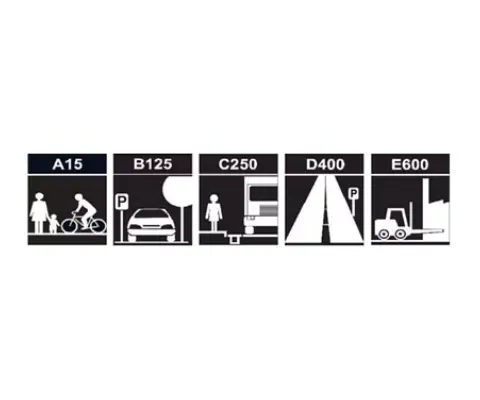

• Compatible with multiple surface load scenarios (A15–F900)

Applications and Benefits

• Ideal for roads, intersections, and freight access zones

• Handles surface runoff efficiently in traffic-intensive environments

• High-strength construction resists deformation under frequent dynamic loads

• Adapts to sloped, flat, or stepped site designs

• Minimizes hydraulic resistance for continuous surface water flow

Installation and Layout Flexibility

Installers benefit from the unit’s modular 1000 mm sections, allowing efficient transport and placement. Its lightweight yet robust build simplifies handling on-site. The outlet connector ensures watertight joins between units, reducing leakage risk. Depending on the required site profile, engineers can configure channels for linear, stepped, or no-fall gradients without additional adapters.

FAQs

Q1: What types of vehicles can this channel withstand?

A: With F900 capacity, it supports everything from bicycles to fully loaded freight trucks.

Q2: Can I install it in flat areas without slope?

A: Yes, the system allows no-fall installation while maintaining reliable flow.

Q3: Does the height need to be fixed at the factory?

A: No, the total height can be adjusted on-site between 250–350 mm.

Q4: What materials ensure corrosion resistance?

A: The polymer concrete body and protected fittings resist chemical and moisture damage.

Q5: Is it compatible with other MEA grating systems?

A: Yes, it integrates seamlessly with MEA’s grating and cover ranges.

Why Choose Traffic Drainage Channel

MEA traffic drainage channel provides high-performance flow control in spaces where traffic impact and environmental exposure demand more. With flexible gradient configurations, corrosion resistance, and loading up to F900, it protects infrastructure while reducing long-term maintenance costs. Whether you’re designing new urban developments or upgrading public roads, this system offers precise drainage, engineered durability, and proven reliability under heavy use.
