MEADRAIN® PG Drains for parking Structure: Best Practices for Safe and Efficient Drainage
Introduction
When creating designs for multistory car parks, drainage systems are usually an afterthought, but drainage systems will impact on the safety of users, on the longevity of the structure, and the comfort of the user throughout the life of the facility. MEADRAIN® PG Drains for Parking Structures provide an innovative solution for the control of water in indoor parking decks.
Developed by CMSA Group, these monolithic polymer-concrete channels integrate ultra-flat profiles with soundless operation and extreme flexibility. This document describes the best approaches for the selection, installation, and maintenance of MEADRAIN® PG Drains for Parking Structures to provide safe, effective, and durable drainage.
Why Opt MEADRAIN® PG Drains for Parking Structures?
Traditional channel systems with removable grates are prone to rattling, corrosion, theft, and clogging. MEADRAIN® PG Drains for Parking Structure eliminate these pitfalls through an integrated, open-design channel that has no moving parts. Key advantages include:
•Zero noise generation: With no loose grates, vehicles pass silently over the channels—a critical benefit for residential or office buildings with underground parking.
•Corrosion-proof construction: The salt, oil, fuel, and de-icing chemical resistant body of polymer-concrete contains no metal.
•Lightweight and easy to handle: Weighing up to 75 % less than conventional concrete channels, installation requires no heavy machinery.
•Barrier-friendly accessibility: Norm-compliant slot widths (max. 16 mm) ensure wheelchair and bicycle trafficability without tripping hazards.
Key Technical Features of MEADRAIN® PG Drains for Parking Structure
Understanding the technical specifications helps planners specify the right system for each project. MEADRAIN® PG Drains for Parking Structure are available in two primary models:
Both models share an extremely shallow 50 mm profile—the lowest on the market—which minimises structural excavation and preserves ceiling height.
Material excellence:
CMSA polymer concrete offers:
•Compression resistance ≥ 90 N/mm² and flexural strength ≥ 22 N/mm².
•Water absorption below 0.05 % and capillary-free structure, preventing fluid ingress.
•pH 3–9 chemical resistance, safeguarding groundwater from toxic spillage.
•Total resistance to frost and full aging stability. Guaranteed decades of no maintenance.
Load Class and Structural Performance
MEADRAIN® PG Drains for Parking Structure meet Load Class C 250 defined by EN 1433. Therefore, they support the weight of cars, trucks, and freight vehicles. This class of rating supports:
•The integrity of a long life: Drains do not deform from the impact of loading.
•Decreased risk: A proper load rating minimizes the risk of failure and the cost of repairs.
•Drains for Parking Structure support the safe passage of all vehicles, even if service vehicles occur.
Drains for Parking Structure have a modular design, allowing a custom cover thickness to be less than 1.2 mm for lower load requirements.
Design Flexibility and Customisation Options
Parking Structure's strongest capability is the range of top-slot designs and the ability of the architect to integrate the drains with the floor design in both form and function.
The top slot design can be:
•Middle, side, twin or multiple, arc, or lateral twin.
•The side or vertical dimensions of the slot can be designed to meet site grading and/or landscaping needs.
•The width of the channel may be designed to meet site drainage needs, with a range of 100 to 300 mm.
•Also, drains may be designed to meet site needs in width and layout, as elements can be joined in both length and width.
•A variety of elements allow the design of complex systems within parking structures, including junctions and sealed channel ends.
•After installation, channel sealing can be modified by the top access groove for site waterproofing.
In addition to drainage, the slots can assist the visually impaired, thus, significantly improving the safety of the design.
Best Practices for Installing MEADRAIN® PG Drains for Parking Structures
For the best long-term performance, installation should be done with care using the following guidelines:
•Prepare the subfloor: Use wooden boards (H = 53 mm, B = channel width + 40 mm) to make a reservation in the concrete slab. Minimal floor removal (only 50 mm) is required.
•Set minimal slopes: The system is optimized for flat gradients. This is useful for indoor slabs that can't have large falls.
•Securely connect the modules: Use junction elements and end caps for continuous runs. The lightweight design (11.4–22.8 kg per unit) enables manual placement without cranes.
•Seal the channel groove: Apply suitable sealant to the groove, which is fully accessible from the top—this allows future re-sealing without dismantling the channel.
•Verify alignment: Because there are no loose grates, the layout remains stable even after heavy traffic, reducing post-installation adjustments.
Operational Benefits: Safety, Silence and Sustainability
The lifecycle benefits of MEADRAIN® PG Drains for Parking Structures include:
•Improved User Satisfaction: Construction of a completely silent system avoids grate rattle, a frequent dissatisfaction reported in multi-storey car parks.
•Lower Maintenance Requirements: No drain covers means all that is required for cleaning is a shovel or vacuum. Inspections may also be performed without any lifting.
•Vandal and Theft Proof: The integral construction ensures no theft or tampering is possible.
•Environmentally Sound: The material doesn't corrode and so prevents the leakage of any chemicals to the ground water. Additionally, due to the long service life, waste caused by replacement is negligible.
•Enhanced Safety: Norm-compliant slot widths avoid the entrapment of wheelchair or bicycle elements while the surface is completely flush and therefore, no uneven areas are present to result in tripping.
Common Applications and Suitability
MEADRAIN® PG Drains for Parking Structure are specifically engineered for:

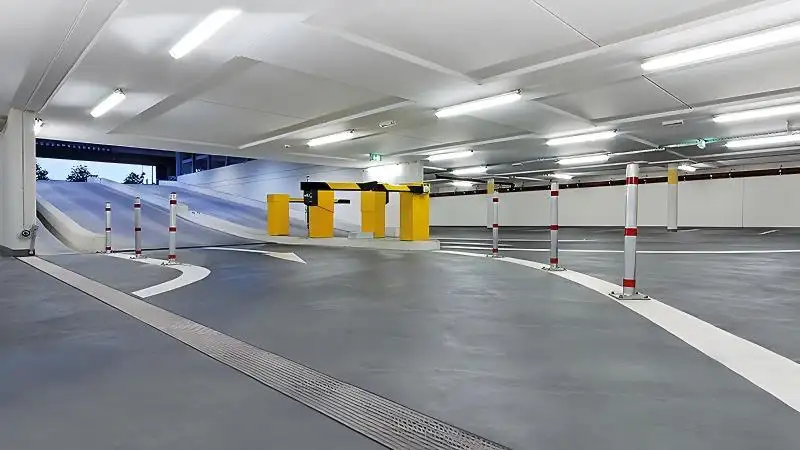

•Multi-storey and underground parking garages.
•Parking decks in residential, commercial, and mixed-use buildings.
•Industrial halls with light-vehicle traffic.
•Renovation projects where shallow profiles are essential to avoid structural alterations.
The system works well with new concrete slabs and floors that have been retrofitted.
Conclusion: Making the Right Choice for Long-Term Performance
Good drainage is an important feature of the design of parking structures, but it is often overlooked. MEADRAIN® PG Drains for Parking Structures supply a solution that is silent, corrosion resistant, and customizable. They are a unique option to fill this design gap, and because they are rated C 250 with a 50 mm profile, require no maintenance, and have unlimited design options, they are a great investment for the building and the people who use it.
Through the use of the proper slot configuration, the system's modular flexibility, and the system's proper installation, the best practices for the system, can be, and have been, properly used in order to achieve drainage that operates quietly and reliably for years to come. For all of these reasons, MEADRAIN® PG Drains for Parking Structures is the best option for indoor parking facilities.
FAQs
Q1: What load class do MEADRAIN® PG Drains for Parking Structure support?
They meet load class C 250 (EN 1433) and, therefore, comfortably accommodate passenger cars, trucks and goods vehicles.
Q2: Are MEADRAIN® PG Drains for Parking Structure loud?
No. MEADRAIN® PG Drains for Parking Structure are silent as they have no moving parts and no loose grates.
Q3: Can the slot configuration be customized?
Yes. Customizations include middle, side, twin, multiple and arc top slots. Slot heights may also be adjusted to fit site ground conditions.
Q4: How shallow are MEADRAIN® PG Drains for Parking Structure?
They are the shallowest system at 50 mm, and are the most shallow system of prefabricated channels, requiring the least depth of excavation from the floor slab.
Q5: Are they corrosion resistant?
Yes. The entire polymer concrete body has no metal and is, therefore, corrosion resistant to the most common embedded metal corrosion culprits like salts, oils, fuels and de-icing chemicals.
