How Stainless Steel Slotted Channel Grating Improves Safety and Appearance

Introduction

In the industry of drainage solutions, Stainless Steel Slotted Channel Grating has transmuted from a functional object to a sophisticated construction design element. It is an advanced grating system that combines the safety of pedestrians and structural quality with aesthetics.

Whether utilized in commercial kitchens, public plazas, pharmaceutical clean rooms, transportation hubs, etc., Stainless Steel Slotted Channel Grating leaves traditional cast iron and polymer systems far behind. This article will analyze the safety and aesthetic design elements of Stainless Steel Slotted Channel Grating systems.

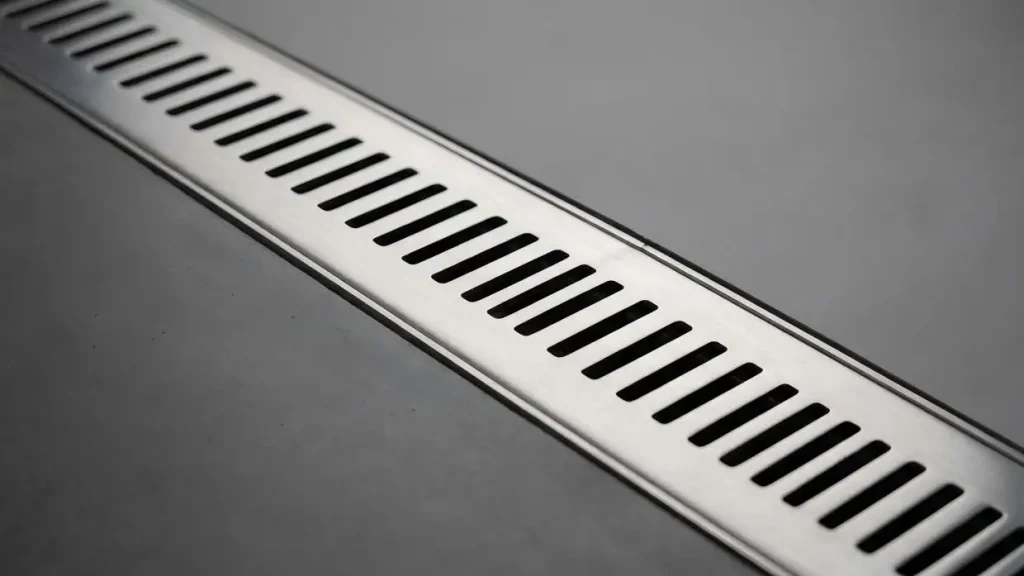

What is Stainless Steel Slotted Channel Grating?

Stainless Steel Slotted Channel Grating is a type of drainage cover that consists of parallel narrow slots. These slots allow quick drainage of water while providing almost a solid surface to walk on. The width of the slots is generally between 5 to 8 mm, which is considered sufficient to avoid trapping of bike tires and wheelchair casters, and even the high heeled shoes.

Constructed from 304 and 316L austenitic stainless steels, this grating has high strength and excellent corrosion resistance. This grading may further optimized in surface treatments with excellent performance. Overall, Stainless Steel Slotted Channel Grating may used in covered grating in both UK standards EN 1253 and EN 1433.

Advantages of Steel Slotted Channel Grating in Safety

1. Slip Resistance

•Grip under slippery conditions: Grating that has either, or both, sunken edges aligned in a row, and in-between, or a surface that is uneven and therefore textured, maintains a good grip when wet, greasy, and/or oily.

•Proven performance: Stainless Steel Slotted Channel Grating products acquire slip-resistance classes of R10–R13 (DIN 51130). This range is adequate to prevent slip and fall incidences in most, if not all, of the busy/high-traffic areas.

2. Heel-Proof and Easy Access

•Prevention of narrow wheel and heel entrapment: Slots with widths of 5–8 mm prevent the entrapment of narrow wheels, crutches, and stiletto heels.

•Constructive compliance: Stainless Steel Slotted Channel Grating is compliant with the accessibility (ADA) standards, and hence can be used in all public structures and all pedestrian ways.

3. High Structural Load Strength

•Heavy duty: Grating can be obtained in load classes from A15 (pedestrian only) to F900 (all aircraft and heavy vehicles) under EN 1433 and will not permanently deform due to static and dynamic loads of all grades.

•No sudden collapse: The construction of Stainless Steel Slotted Channel Grating is fatigue resistant and provides a long-term span of support with repeated passage.

4. Bacteria Resistance

•Non-porous: Bacteria cannot grow on 304/316L stainless steels, and bacteria cannot grow on the moisture or organic matter on the metal.

•Sanitized Surface: Electropolishing and passivation of surfaces in the food and health care industries can be cleaned using common detergents or even steam.

5. Corrosion Resistant for Long Time

•Self repairing passive oxide layer: Stainless Steel Slotted Channel Grating has a chromium film that is even rustproof in a coastal and chemically aggressive environment.

•Material Strength: Containing more Molybdenum, Grade 316L provides additional defense from chlorides and guarantees that grating stays free from edge breakdown and section weakness throughout several decades.

The Advantages of Aesthetic Appeal in Stainless Steel Slotted Channel Grating

1. Complementing the Modern Minimalist Aesthetic

The Slotted Channel Grating's linear slot pattern and stronger clean lines fit right in with Modernist Grating design. The neutral silver even complements Concrete, Stone, Timber, and Ceramic finishes and blends with, or allows drainage systems to disguise or feature integrate with the design.

2. Balancing Aesthetic and Surface Finishes

Surface Treatment	Visual Effect	Safety Impact	Typical Application
Passivation	Matte, chemically clean	Standard slip resistance	Indoor industrial, commercial kitchens
Electropolishing	Bright, reflective, glossy	Enhanced cleanability, reduced bacterial adhesion	Pharmaceutical, laboratories, premium retail
Sandblasting	Uniform satin/matte texture	Increased surface roughness for extra grip	Outdoor plazas, wet areas, coastal installations

Safety is increased by surface roughness and a uniform satin/matte texture

The above shows the balance of safety and aesthetics.

3. An Abundance of Styles

Grating Style	Slot/Mesh Pattern	Aesthetic Character	Best Suited For
Slot Grate	Narrow parallel slots	Sleek, understated, minimal visual intrusion	High-end interiors, showrooms, pedestrian zones
Wedge Mesh Grate	V-shaped wire mesh	Industrial-chic, open yet supportive	Outdoor walkways, ramps, drainage channels
Ladder Grate	Rectangular bars	Robust, utilitarian	Heavy-duty industrial platforms
Hygienic Ladder	Smooth bars with radiused edges	Clean, seamless, sanitary	Food processing, dairies, breweries

Diversity in styles continues to please design requirements and functions fulfilled by Stainless Steel Slotted Channel Grating systems.

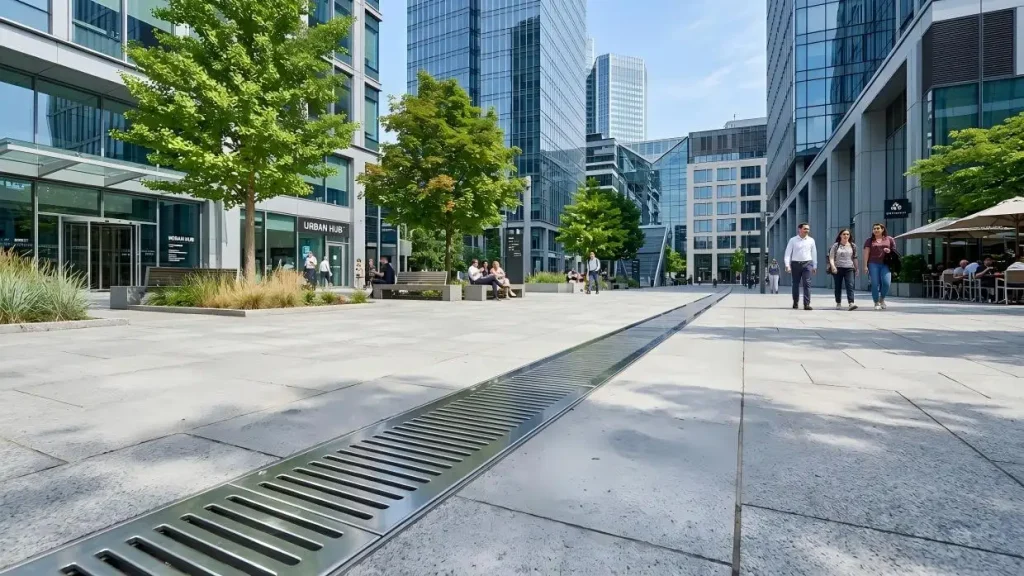

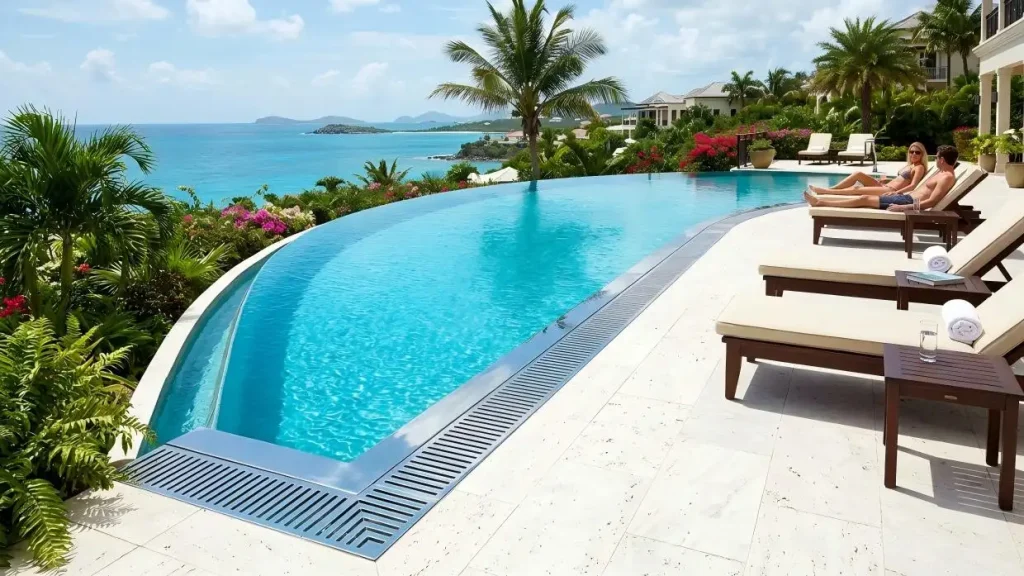

4. Seamless Surface Integration

Stainless Steel Slotted Channel Grating, when properly installed, sits flush with the surrounding floor or paving material, providing a continuous surface that does not disrupt the flow of vision or space. Specifically for luxury hotels, museums, and urban regeneration projects, where near invisible drainage is preferred, this surface integration is most appreciated.

5. Everlasting Visual Appeal

Plastic can become yellow and cast iron rusts. Neither happens with rust and stain resistant Stainless Steel Slotted Channel Grating. After some periodic simple cleaning the grating can be restored to a like new shine. Chip and flake resistance also ensure the premium appearance of the product for its entire service life.

Material Choice: 304 vs. 316L Stainless Steel

Grade	Corrosion Resistance	Typical Environment	Cost	Magnetic Response
304	Excellent for most indoor and mild outdoor conditions	Dry interiors, light industrial, urban areas	More economical	Slightly magnetic after forming
316L	Superior resistance to chlorides, acids, and saltwater	Coastal zones, chemical plants, swimming pools, food processing	Higher	Nearly non-magnetic

To ensure the optimal safety and service longevity of Stainless Steel Slotted Channel Grating for an intended application, the appropriate grade of material can be selected.

Extra Performance Benefits

1. Innovative Grating Design

•Reduced Labor Costs and Grating Installation Time: Stainless Steel Slotted Channel Grating has an excellent high strength-to-weight ratio.

•Flexible Design Layout: Lighter grating means support channels and substrates can be less stressed.

2. Low Lifecycle Maintenance

•Periodic maintenance is not needed: The outstanding corrosion resistance of Stainless Steel Slotted Channel Grating means no periodic maintenance, such as painting, galvanizing, or coating, is needed.

•Maintenance is Cost Effective: Slip resistance is maintained along with the surface, and the appearance is improved with cleaning using mild soap, which reduces maintenance costs.

3. Fire and Temperature Resistance

•Noncombustible: It is suitable for fire-sensitive areas because it cannot burn and will not produce toxic gases.

•Wide Temperature Range: Continuous Stainless Steel Slotted Channel Grating can be used safely and effectively from the extreme of cold (cryogenic) to the other of high temperatures, which is beyond 800 °C, and will not affect the gratings' structural integrity.

Final Words

The design of Stainless Steel Slotted Channel Grating is an engineering improvement. It's safety characteristics make it ideal for applications where safety is a priority. These safety characteristics include slip resistance, heel-proof apertures, hygienic surfaces, high-load strength, and corrosion resistance.

The Stainless Steel Slotted Channel Grating is very aesthetically pleasing and retains versatility in its design and drainage. Channel Grating allows architects to design spaces that are aesthetically pleasing and help the function of the space.

Adding Stainless Steel Slotted Channel Grating to a new or old build adds safety, beauty, and a low maintenance system. With an improvement to safety and beauty, it can help meet the expectations or restrictions of a design.

FAQs

Q1: What are the applications of Stainless Steel Slotted Channel Grating?

A: Slotted Channel Grating is a drainage cover system for the pedestrian and light vehicle traffic. It is designed for sophisticated yet practical water flow and slip resistant drainage cover for commercial, industrial and public areas.

Q2: What stainless steel grades do you offer?

A: We offer 304 (general purpose) and 316L (higher grade, better corrosion resistance, especially in coastal and chemical environments).

Q3: Does Stainless Steel Slotted Channel Grating fulfill safety requirements?

A: Yes. It conforms to EN 1253 (indoor) and EN 1433 (outdoor) with load classes A15 to F900 for high levels of structural assurance.

Q4: Is it slip-resistant when wet?

A: Yes. The precisely manufactured slots and a choice of surface textures (sandblasting for example) offer reliable slip resistance. Achieves slip-resistance classes R10, R11, R12, R13.

Q5: What surface finishes do you offer?

A: We offer Passivation (matte), Electropolishing (bright and reflective), and Sandblasting (satin, textured) finishes. Each has a distinct look and differing ease of cleaning.
